ZX8-400R

ZX8-400R

uitable for large-sized packaging bags, automatic metering, filling and sealing.
The advanced bag-loading mechanism ensures a very high bag-loading rate.
The advanced design concept ensures the stability of equipment operation, reduces the defective rate and prolongs the life of equipment operation

Description

Model

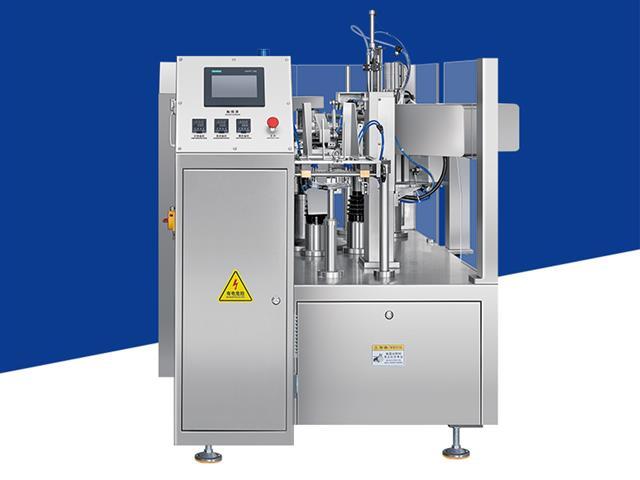

ZX8-400R large size bag feeding packaging machine

Technical Highlights

10-60 packs /min

Advanced transmission mechanism to ensure stable operation /

Strong compatibility of size and specification, stable heat-sealing structure /excellent sealing quality

Functions and Features

Suitable for large-sized packaging bags, automatic metering, filling and sealing.

The advanced bag-loading mechanism ensures a very high bag-loading rate.

The advanced design concept ensures the stability of equipment operation, reduces the defective

 rate and prolongs the life of equipment operation

Using high-quality accessories, the packaging machine is durable and stable.

This machine uses prefabricated packaging bags with perfect packaging patterns and good sealing quality,

thus improving the quality and grade of products. Adopt advanced PLC plus POD electrical control system, friendly man-machine interface, easy to operate.

Main Standard Components

1. Bag loading system 2. PLC control system 3. Bag opening device 4. Unloading system 5. Heat sealing control system

6. Output system 7. Cleaning system 8. Transfer system

Scope of Application

Granules, powders, liquids, sauces and other materials.

Main optional configuration

Material metering filling machine, working platform, weight selection alias, material hoist, finished product conveyor belt, metal detector.

Model

ZX8-400R

Packaging Materials

Composite bags such as stand-up bags, handbags, zipper bags, four-side seal bags, three-side seal bags, paper bags, etc.

Bag Size

Width /300-400mm

Length /180-580mm

Fill range:

10-2500g (depending on the type of product)

Packing Speed

25-40 packs/min

(zipper bag)

Compressed air consumption

≥0.6 cubic meters per minute (compressed air is provided by the user)

Dimensions (length x width x height)

2520×1750×1600mm

Machine Weight

1680kg

Bag Style
